1. Thisstrong and durable thin stone veneer saws deliver consistent fabrication and are easy to use.
2. It canhelp transform large pieces of natural and engineered stone into thin stone veneer flats and corners of exceptional quality for any construction project.

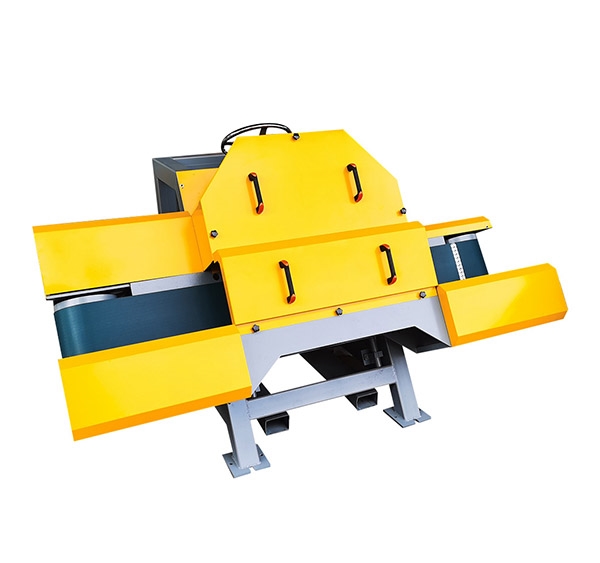

Cutting Thin Stone Veneer Flats & Corner Pieces
切割薄石材飾面板的平面部分和轉角部分
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
華隆機械,數控五軸橋切機,四軸橋切機,4+1橋切,5+1橋切,三軸橋切機,紅外線橋切機,石材切機,石材加工廠設備,石材拋光機,石材拋光設備,石材加工中心,臺面加工中心,水刀,水刀切割機,礦山開采設備,礦山圓盤鋸,圓盤雙刀鋸,礦山機,礦山鋸。
產品型號 | Name | 單位 UNIT | HLVS-800 | HLVS-1200 |
刀片直徑 | Blade Diameter | mm | 800 | 1000 / 1200 |
最大切割厚度 | Max. Cutting Depth | mm | 280 | 350 / 450 |
最大鋸片轉速 | Max. Blade Speed | rpm | 780 | 900 |
鋸片上下距離 | Saw blade up/down distance | mm | 0-120 | 0-250 |
鋸片前后距離 | Saw blade back/forth distance | mm | 0-200 | 0-250 |
可加工石材厚度 | Processable stone thickness | mm | 20-220 | 20-270 |
傳送帶尺寸(長 x 寬 x 厚) | Conveyor Belt Size (Lx W x T) | mm | 5970*280*7 | 6800*400*7 |
傳送帶(可調)速度 | Conveyor (Adjustable) Speed | mm/min | 600-2450 | 600-2450 |
主電機功率 | Main Motor Power | kw | 22 (30HP) | 45 (60HP) |
耗水量 | Water Consumption | m3/h | 3.5 | 4個 |
總重量 | Gross weight | kg | 2300 | 3200 |
尺寸(長 x 寬 x 高) | Dimensions(L x W x H) | mm | 2850x1900x1800 | 3300x2180x2180 |
溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯系我們。
